Merida Launch Their New eOneForty and eOneSixty.

Merida have given their eOneSixty and eOneForty ebikes a refresh in almost ever aspect, keeping up with their most recent bike updates.

The most recent bikes to get the latest kinematic and geometry updates in Merida’s range are the eOneSixty and eOneForty ebikes that get the Agilometer treatment as well as suspension layout changes.

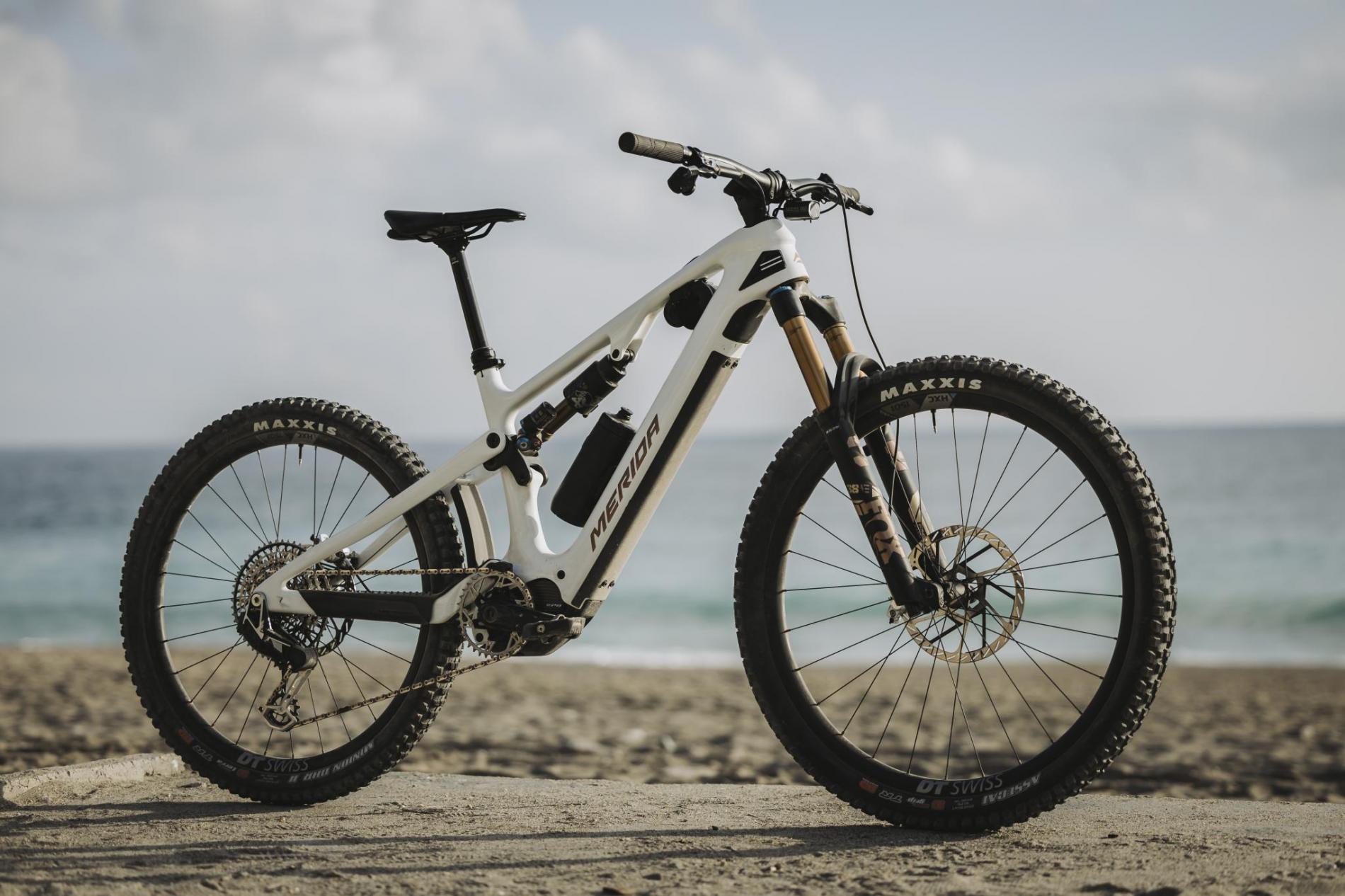

Topping the range of new offerings is the eOneSixty CF, sporting 170 mm front and 174 mm rear travel (27.5″ wheel), a fully integrated 600Wh battery that can be extended to 960Wh with an optional range extender. The eOneSixty Lite is the alloy version of the same, with a larger battery at 750Wh, pushing the total battery capacity to over 1000Wh with the range extender.

eOneForty models are alloy only, 143mm rear wheel travel on 29″ wheels, run a 750Wh battery with the option to go over 1000Wh hours with the same supplied range extender. All bikes are equipped with Shimano’s EP801 motor providing 85Nm of torque.

Size specific leverage curves mean that riders can get full travel and the support they need from their suspension. The kinematic is a derivation of the FAST platform first seen on the new OneSixty and OneForty. The eOneSixty runs a P-Flex Stay whilst the eOneForty runs a seat stay bearing pivot. A flip chip does change travel (+/- 14mm) but keeps the geometry the same should you want to go full 29″ or MX wheels.

Head angles are 1 degree slacker, seat tubes are 3 degrees steeper, reach has grown 19mm and chainstays are 6.5mm longer. Head tubes are shorter to bring the front end lower and the reach based sizing is complimented by Merida’s new travel adjust seat post.

The Merida eOneForty range is four bikes strong, starting with the eOneforty 400 at £4,300.00 and rising to the eOneForty 675 EQ at £5,300.00. The eOneSixty range kicks off with the eOneSixty Lite 675 at £5,500.00 rising to the eOneSixty CF 10000 at £10,500.00.

Merida eOneSixty and eOneForty models

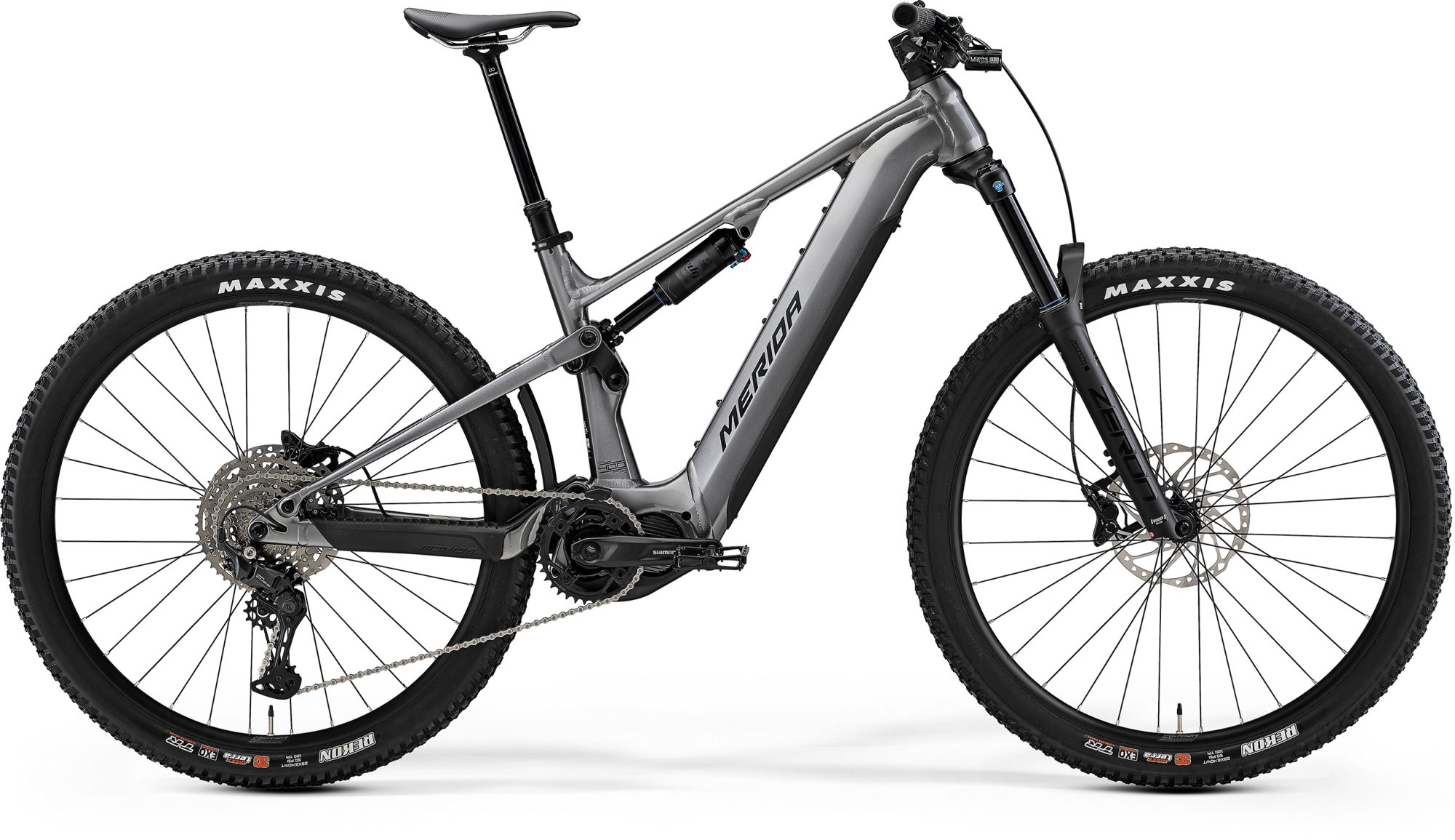

eOne-Forty 400

Key features:

  • SR Suntour Zeron 36 150mm fork
  • SR Suntour Edge Plus shock
  • Shimano CUES U6000 10-speed drive
  • Shimano EP801 motor
  • Shimano EN806 630Wh battery
  • Shimano MT420 4-piston brakes
  • Merida Comp TR II rims on Shimano TC hubs
  • Merida Comp TR II dropper
  • £4,300.00 RRP

eOne-Forty 475

Key features:

  • SR Suntour Zeron 36 150mm fork
  • SR Suntour Edge Plus shock
  • Shimano CUES U6000 10-speed drive
  • Shimano EP801 motor
  • Trendpower 750Wh battery
  • Shimano MT420 4-piston brakes
  • Merida Comp TR II rims on Shimano TC hubs
  • Merida Comp TR II dropper
  • £4,850.00 RRP

eOne-Forty 475 EQ

Key features:

  • SR Suntour Zeron 36 150mm fork
  • SR Suntour Edge Plus shock
  • Shimano CUES U6000 10-speed drive
  • Shimano EP801 motor
  • Trendpower 750Wh battery
  • Shimano MT420 4-piston brakes
  • Merida Comp TR II rims on Shimano TC hubs
  • Merida Comp TR II dropper
  • £5,000.00 RRP

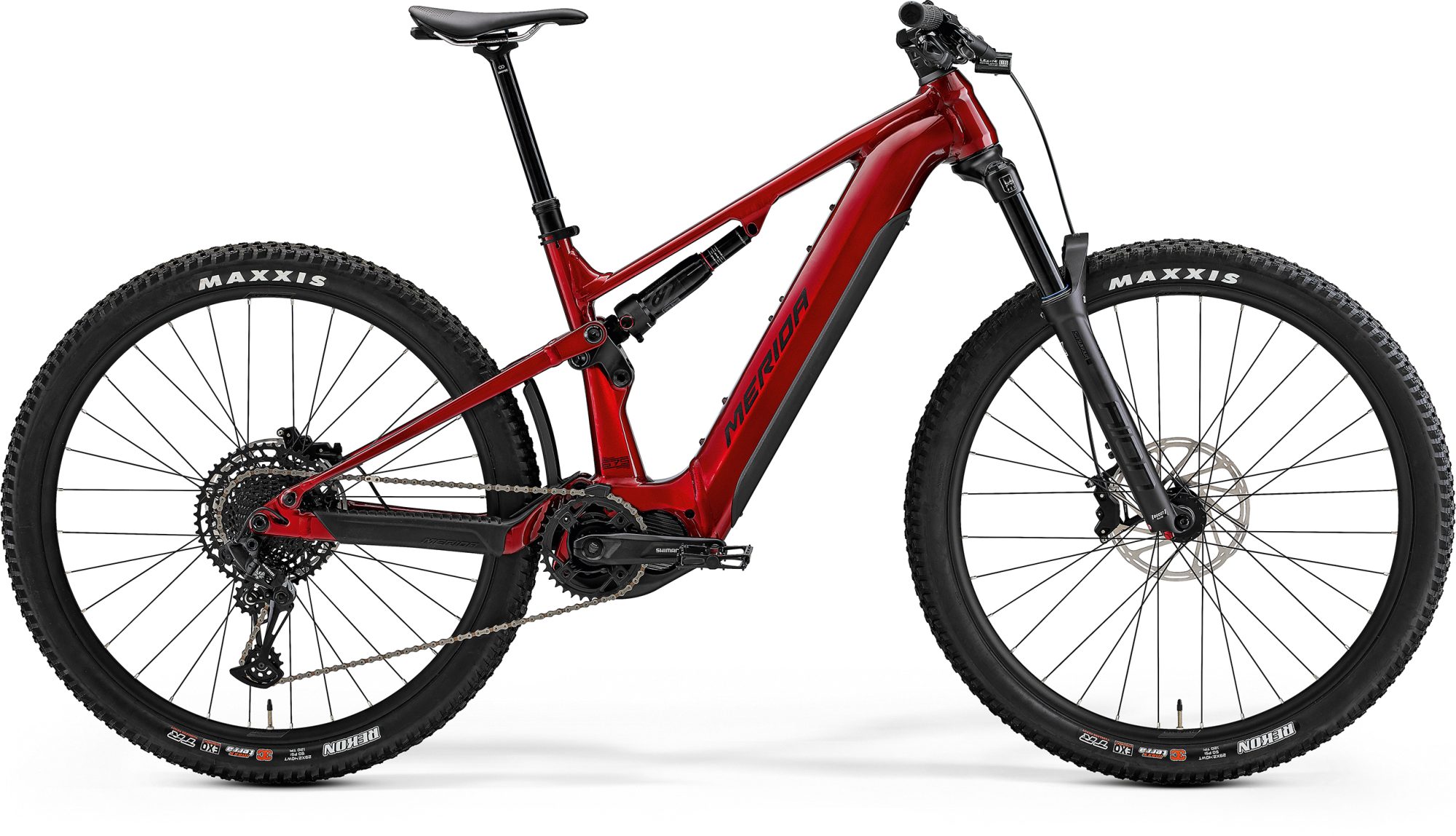

eOne-Forty 675

Key features:

  • SR Suntour AION X 36 150mm fork
  • Rock Shox Super Deluxe Select shock
  • SRAM NX Eagle 12 speed drive
  • Shimano EP801 motor
  • Trendpower 750Wh battery
  • SRAM DB8 brakes
  • Merida Comp TR II rims on Novatec SL-Team hubs
  • Merida Expert TR II dropper
  • £5,200.00 RRP

eOne-Forty 675 EQ

Key features:

  • SR Suntour AION X 36 150mm fork
  • Rock Shox Super Deluxe Select shock
  • SRAM NX Eagle 12 speed drive
  • Shimano EP801 motor
  • Trendpower 750Wh battery
  • SRAM DB8 brakes
  • Merida Comp TR II rims on Novatec SL-Team hubs
  • Merida Expert TR II dropper
  • £5,300.00 RRP

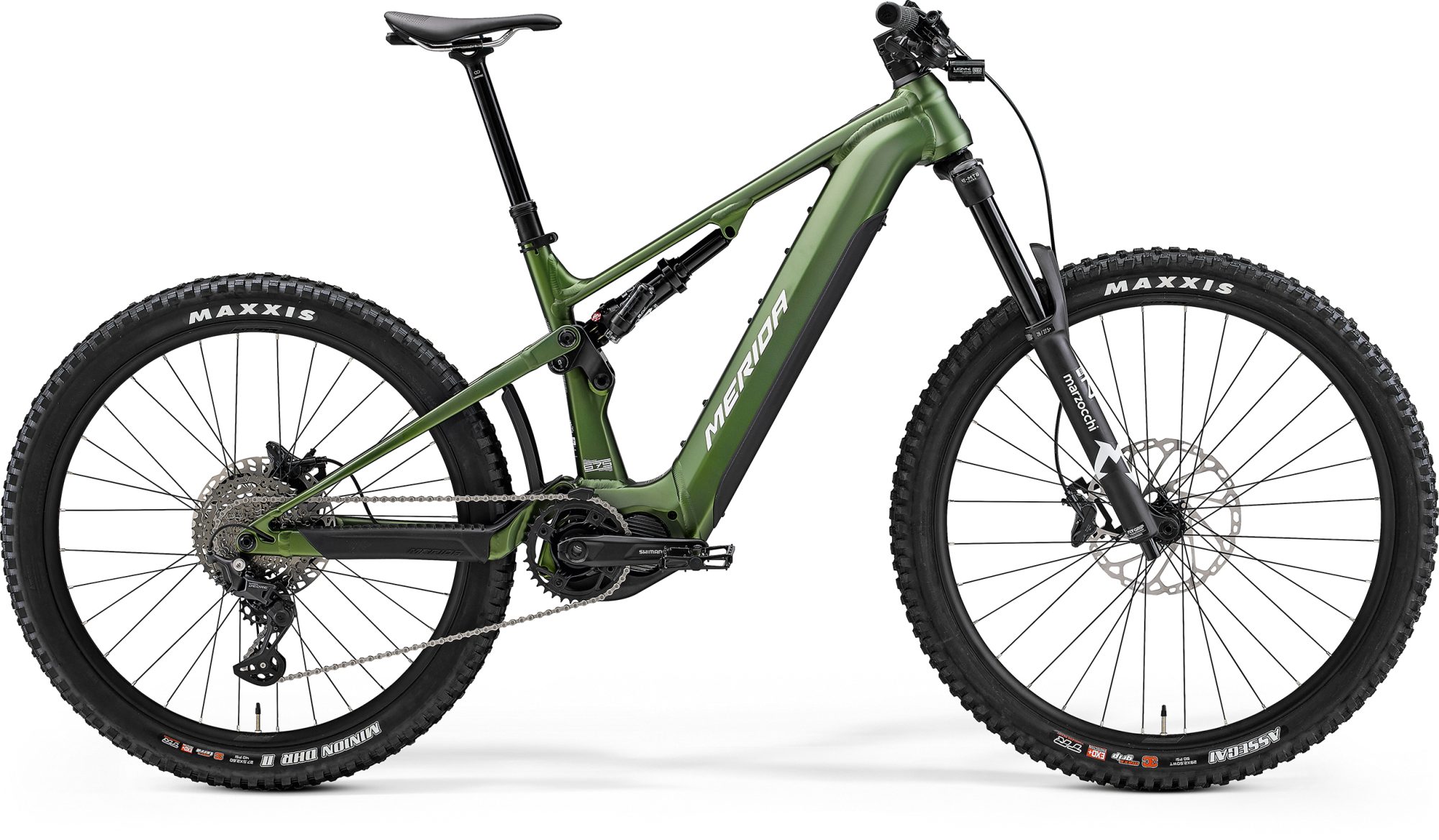

eOne-Sixty 675

Key features:

  • Marzocchi Z1 eMTB 170mm fork
  • Marzocchi Bomber Air shock
  • Shimano Deore Linkglide 10-speed drive
  • Shimano EP801 motor
  • Trendpower 750Wh battery
  • Shimano Deore 4-piston brakes
  • Merida Expert TR II rims on Shimano TC hubs
  • Merida Expert TR II dropper
  • £5,500.00 RRP

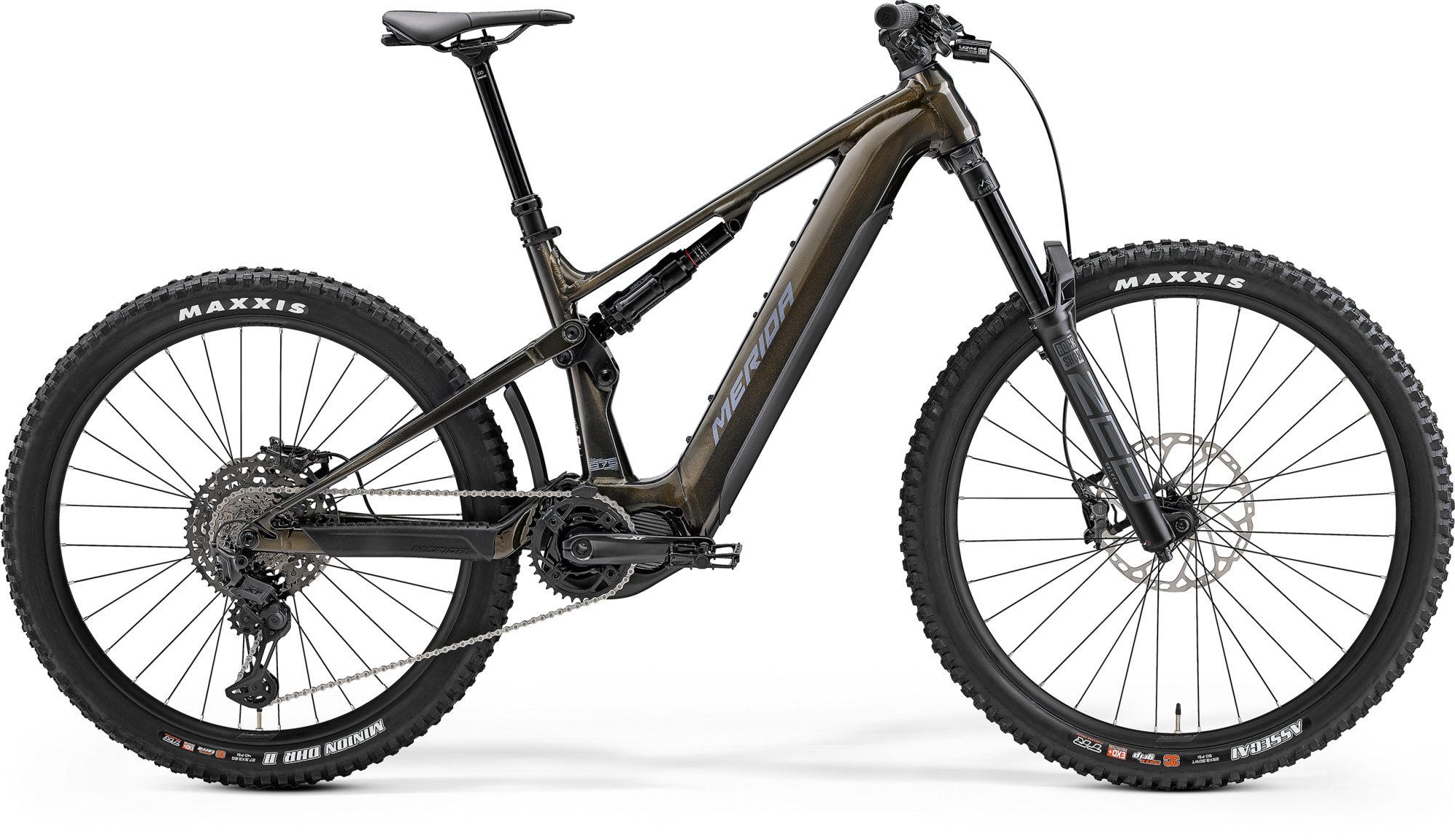

eOne-Sixty 875

Key features:

  • Rock Shox ZEB Select 170mm fork
  • Rock Shox Super Deluxe Select shock
  • Shimano XT Linkglide 11-speed drive
  • Shimano EP801 motor
  • Trendpower 750Wh battery
  • Shimano XT 4-piston brakes
  • Merida Expert TR II rims on Shimano XT hubs
  • Merida Team TR II dropper
  • £6,000.00 RRP

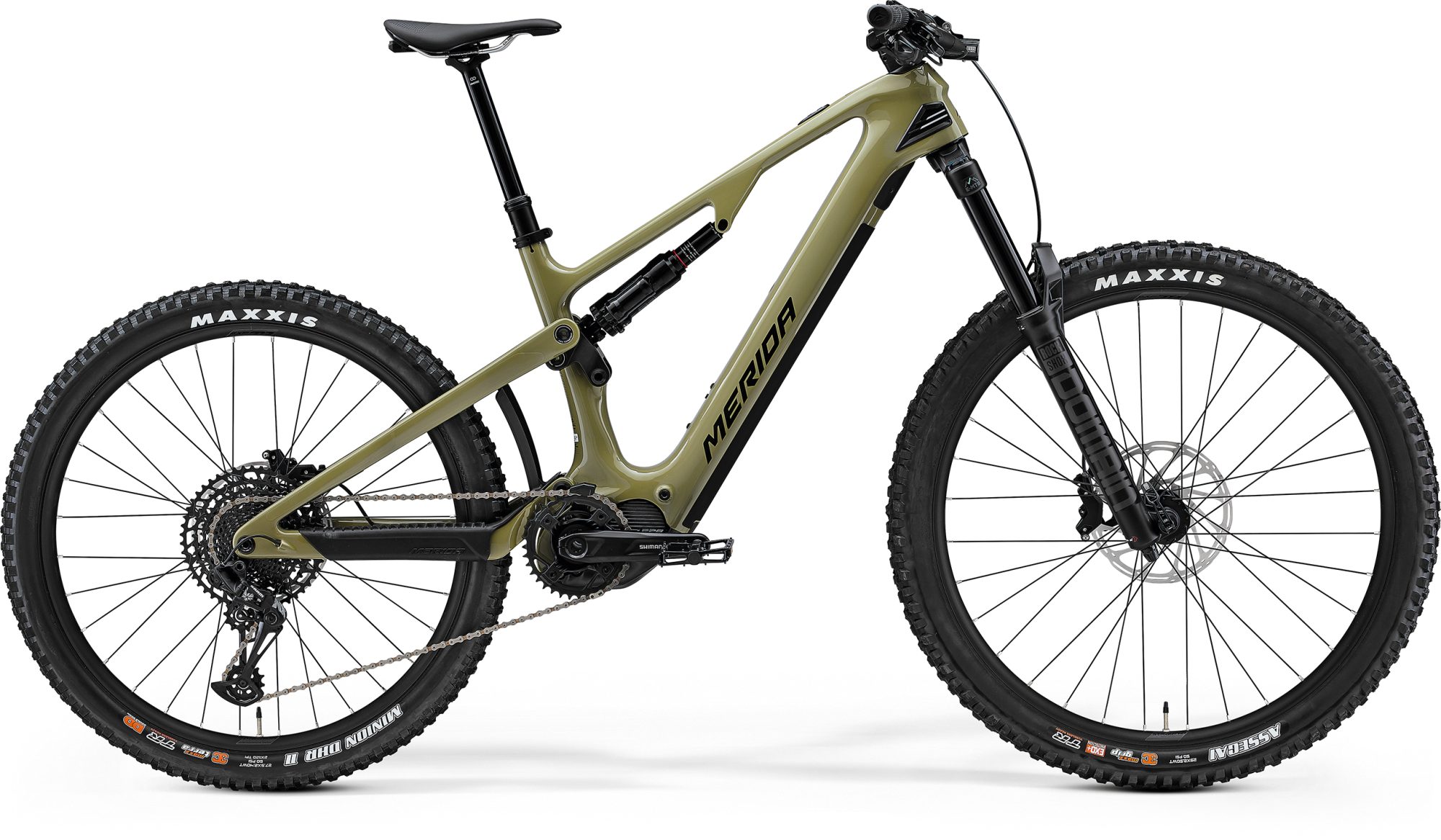

eOne-Sixty 6000

Key features:

  • Rock Shox Domain RC E-MTB 170mm fork
  • Rock Shox Super Deluxe Select shock
  • SRAM NX Eagle 12-speed drive
  • Shimano EP801 motor
  • Trendpower 600Wh battery
  • SRAM DB8 brakes
  • Merida Expert TR II rims on Novatec SL-Team hubs
  • Merida Expert TR II dropper
  • £6,000.00 RRP

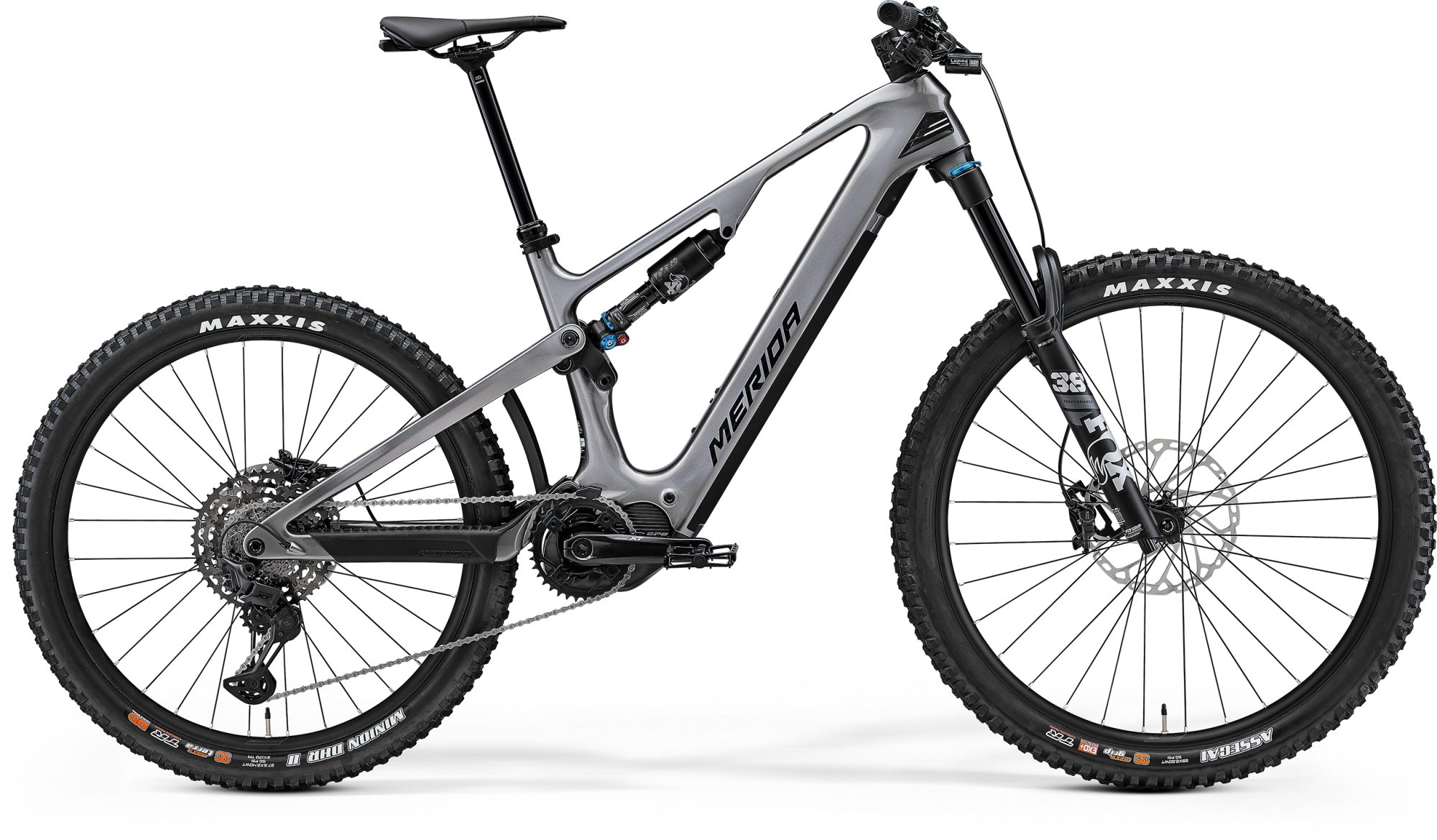

eOne-Sixty 7000

Key features:

  • Fox 38 Performance eMTB+ 170mm fork
  • Fox Float X2 Performance shock
  • Shimano XT Linkglide 11-speed drive
  • Shimano EP801 motor
  • Trendpower 600Wh battery
  • Shimano XT 4-piston brakes
  • Merida Expert TR II rims on Shimano XT hubs
  • Merida Team TR II dropper
  • £7,000.00 RRP

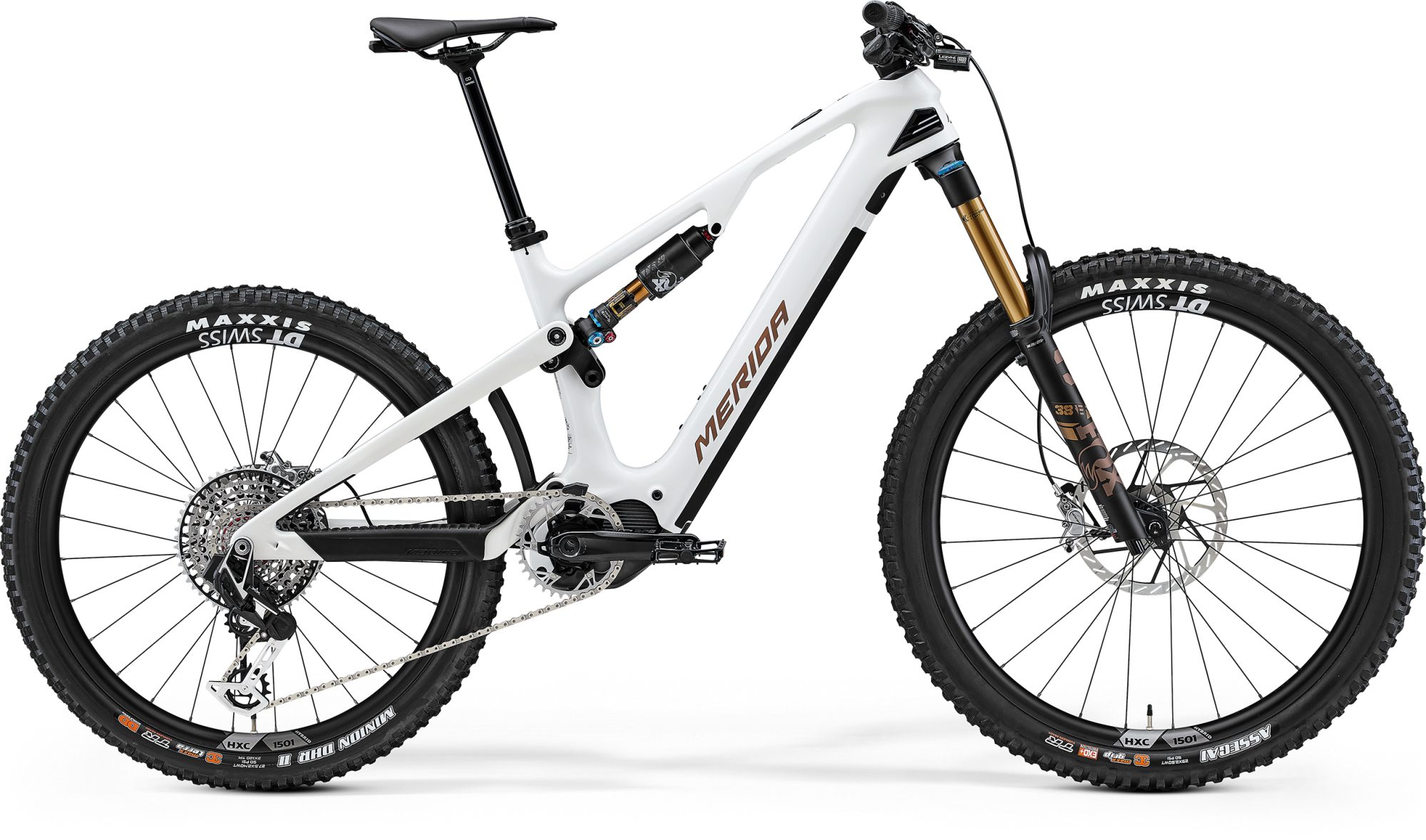

eOne-Sixty 10000

Key features:

  • Fox 38 Factory eMTB+ 170mm fork
  • Fox Float X2 Factory shock
  • SRAM XX AXS Eagle T-type 12-speed drive
  • Shimano EP801 motor
  • Trendpower 600Wh battery
  • SRAM Code Ultimate Stealth brakes
  • DT Swiss Spline HXC1501 spline 30 wheels
  • Merida Team TR II dropper
  • £10,500.00 RRP

You can check out the new Merida eOneSixty here and the new eOneForty here.
