The Orbea Oiz has been updated for 2021 with lower frame weight courtesy of a new rear triangle with TR models coming with 120mm travel.
With two different travel options, three frame materials, and over a million custom options, the Orbea Oiz range certainly ticks all the options boxes, while also sporting a new rear triangle and carbon layup for a serious XC and marathon machine.
Key features:
- 29″ wheels
- 100 (XC) or 120mm (TR) travel options
- OMX (carbon), OMR (carbon) and Hydro (alloy) frames
- XC-race geometry
- Internal cable routing
- S-XL sizing
- £2,199.99 to £7,699.99 RRP
- Orbea.com
The Oiz is Orbea’s best selling bike, and it’s not entire;y surprising to see that they didn’t go down the same route as the Specialized Epic and go for a full re-work, rather a fine tuning of what they already had.
Working with their World Cup XC team, they started working on how to make the bike a better race machine. By changing their carbon layup, shortening the chainstay by 5mm on the XC model and using a flat mount caliper, the top of the range OMX frame comes in at a featherweight 1740g with the shock in size medium. The OMR carbon frame only adds 340g to that tally at 2080g for the same size.
The XC range is topped by the Oiz M-LTD, coming in at £7,699.99 and starts with the Oiz H30 at a mere £2,199.99. The TR range starts with the Oiz H10 TR at £2,699.99, rising to the Oiz M-Pro TR at £4,999.99.
Geometry
The Orbea Oiz shows its real XC roots with its geometry, being considerably shorter and steeper than we’re used to here at Wideopenmag.
There are subtle differences in geometry between the XC and TR versions. A medium Oiz XC sports a 69 degree head angle, 75 degree seat tube angle, with a 435mm reach and a 430mm chainstay. On the Oiz TR, head angle drops to 68, with the seat tube steepening to 75 degrees, while reach drops 10mm, the chainstay remaining at 430mm.
2021 Orbea Oiz models
Oiz M-LTD
Key features:
- Orbea Oiz Carbon OMX frame
- Fox 32 Float SC Factory 100mm fork
- Fox i-line DPS Factory shock
- SRAM XX1 AXS 12-speed drive
- SRAM Ultimate Carbon Stealth-a-majig brakes
- DT Swiss XRC-1200 Spline 30c TLR wheels
- Fox Transfer Factory Kashima
- £7,699.99 RRP
Oiz M-Team
Key features:
- Orbea Oiz Carbon OMX frame
- Fox 32 Float SC Factory 100mm fork
- Fox i-line DPS Factory shock
- Shimano XTR 12-speed drive
- Shimano XTR brakes
- DT Swiss XRC-1501 Spline 30c TLR wheels
- Orbea OC2 Carbon post
- £6,299.99 RRP
Oiz M-Pro TR
Key features:
- Orbea Oiz Carbon OMX frame
- Fox 34 Float SC Factory 120mm fork
- Fox i-line DPS Factory shock
- Shimano XT/XTR 12-speed drive
- Shimano XT brakes
- DT Swiss XR-1650 Spline 25c TLR CL wheels
- Orbea OC2 dropper
- £4,999.99 RRP

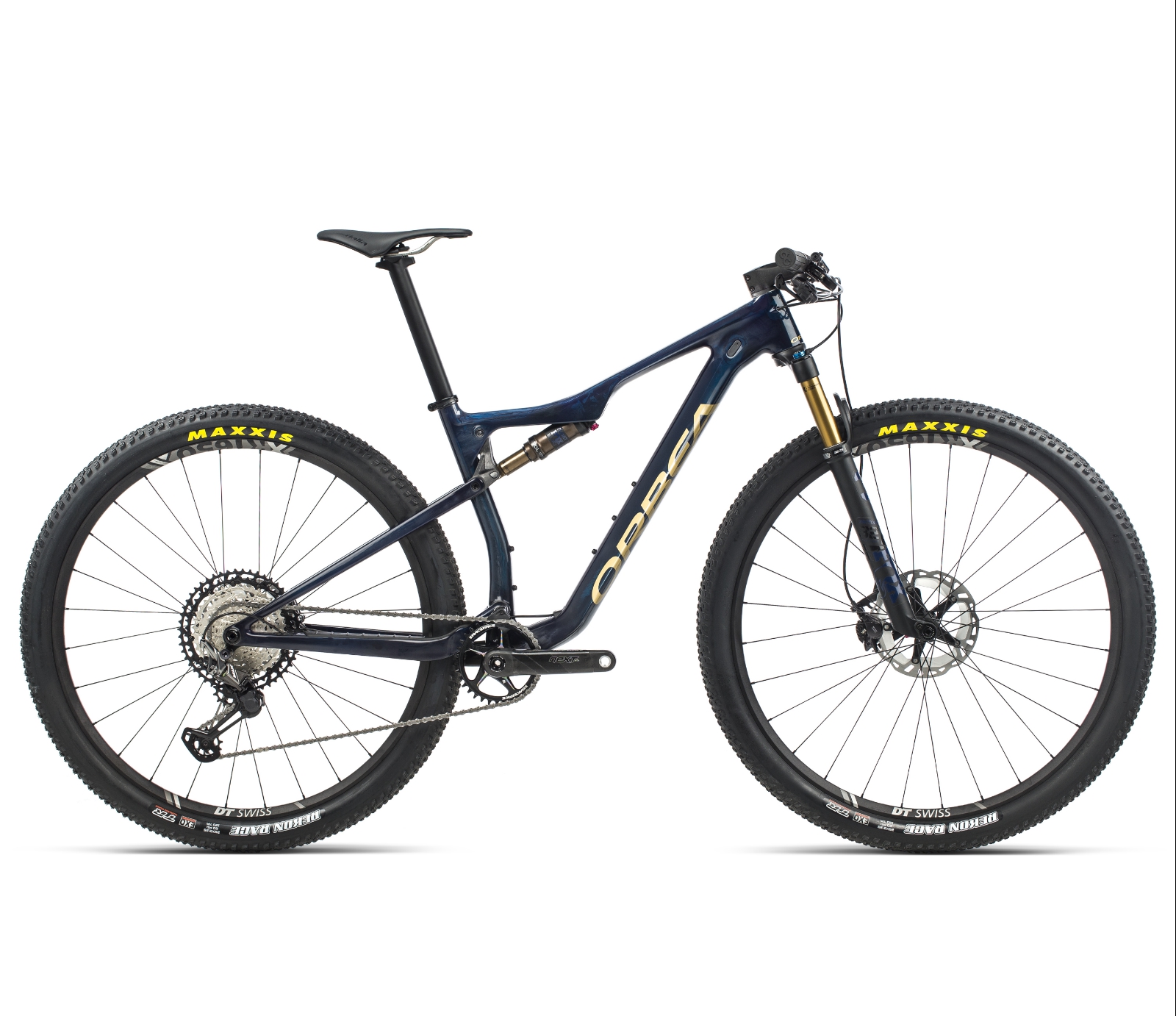

Oiz M-Pro
Key features:
- Orbea Oiz Carbon OMX frame
- Fox 32 Float SC Factory 100mm fork
- Fox i-line DPS Factory shock
- Shimano XT/XTR 12-speed drive
- Shimano XT brakes
- DT Swiss XR-1650 Spline 25c TLR CL wheels
- Orbea OC2 Carbon post
- £4,799.99 RRP
Oiz M10
Key features:
- Orbea Oiz Carbon OMR frame
- Fox 32 Float SC Factory 100mm fork
- Fox i-line DPS Factory shock
- Shimano XT 12-speed drive
- Shimano XT brakes
- DT Swiss XR-1650 Spline 25c TLR CL wheels
- Orbea OC2 forge head alloy post
- £3,999.99 RRP
Oiz M20 TR
Key features:
- Orbea Oiz Carbon OMR frame
- Fox 34 Float SC Performance 120mm fork
- Fox i-line DPS Performance shock
- SRAM GX Eagle 12-speed drive
- Shimano Deore brakes
- DT Swiss X-1900 Spline 25c TLR wheels
- Orbea OC2 Dropper
- £3,499.99 RRP
Oiz M30
Key features:
- Orbea Oiz Carbon OMR frame
- Fox 34 Float SC Performance 100mm fork
- Fox i-line DPS Performance shock
- Shimano Deore/XT 12-speed drive
- Shimano Deore brakes
- DT Swiss X-1900 Spline 25c TLR wheels
- Orbea OC2 forge head dropper
- £3,299.99 RRP
Oiz H10 TR
Key features:
- Orbea Oiz Hydro alloy frame
- Fox 34 Float SC Performance 120mm fork
- Fox i-line DPS Performance shock
- Shimano XT 12-speed drive
- Shimano Deore brakes
- Race Face AR 30c wheels
- Orbea OC2 Dropper
- £2,699.99 RRP
Oiz H20
Key features:
- Orbea Oiz Hydro alloy frame
- Fox 34 Float SC Performance 120mm fork
- Fox i-line DPS Performance shock
- Shimano Deore/XT 12-speed drive
- Shimano Deore brakes
- Orbea OC1 25c wheels
- Orbea OC2 forge head post
- £2,499.99 RRP
Oiz H30
Key features:
- Orbea Oiz Hydro alloy frame
- Fox 32 Float Rhythm 120mm fork
- Fox i-line DPS Performance shock
- Shimano Deore 12-speed drive
- Shimano Deore brakes
- Orbea OC1 25c wheels
- Orbea alloy post
- £2,199.99 RRP
