The New GT Sensor and Sensor ST | Everything You Need to Know.

GT Bicycles have launched the new Sensor and Sensor ST in either long or short travel trail flavours to suit your riding style.

Available in 140mm travel mode for the Sensor or 120mm for the Sensor ST, GT have left no stone unturned when updating their trail 29er platform.

Whilst the new GT Sensors cast a familiar shadow compared to the outgoing models, the frame has seen some serious work, and the range has grown considerably, not only in terms of travel offered between the Sensor and Sensor ST, but the models available within each.

Lower weight is one of the main features of the new GT Sensor frame with an all-new carbon front triangle and seat stay, drops 600g off the frame weight. The alloy components have also been redesigned to keep the weight down. Full internal cable routing is also available on all Sensor frames.

The Sensor ST looks to be quite the 120mm bike, with 29″ wheels, a suitably slack head angle, long reach and wheelbase, mirroring the Sensor geometry mostly but in a shorter travel package.

The Sensor range is seven strong. Five Sensor and two Sensor ST models will be available. Within the two, the Sensor will be coming in three carbon and two alloy options, with the Sensor ST only available in carbon.

OneUp Components Leaderboard 2024

Sensors start at £2,200.00 for the Sensor Sport and rise to the Sensor Carbon Pro LE at £5,000.00. With the Sensor ST, you have choice of either the Sensor ST Elite at £3,350.00 or the Sensor ST Pro at £4,000.00.

Geometry

GT Sensor and Sensor STs are available in S, M, L and XL sizes. Geometry is slightly different depending on frame material.

Reach on the Medium carbon frames is 455mm combined with a 400mm seat tube. Head angle is 65 degrees with a 77 degree seat tube angle. Chainstays are 440mm across the sizes, with the Medium wheelbase at 1221mm.

On the alloy Sensors, Medium reach is 450mm with a seat tube of 420mm. Head angle sits half a degree steeper at 65.5, the same for the seat tube at 77.5 degrees. Chainstays are the same at 440mm, but the wheelbase shortens to 1205mm.

Reach on the Medium Sensor ST is 460mm with a seat tube of 400mm. Head angle is 65.4 degrees with the seat tube at 77.4 degrees. Chainstays are 440mm across the sizes with a wheelbase of 1216mm.

GT Sensor and Sensor ST models

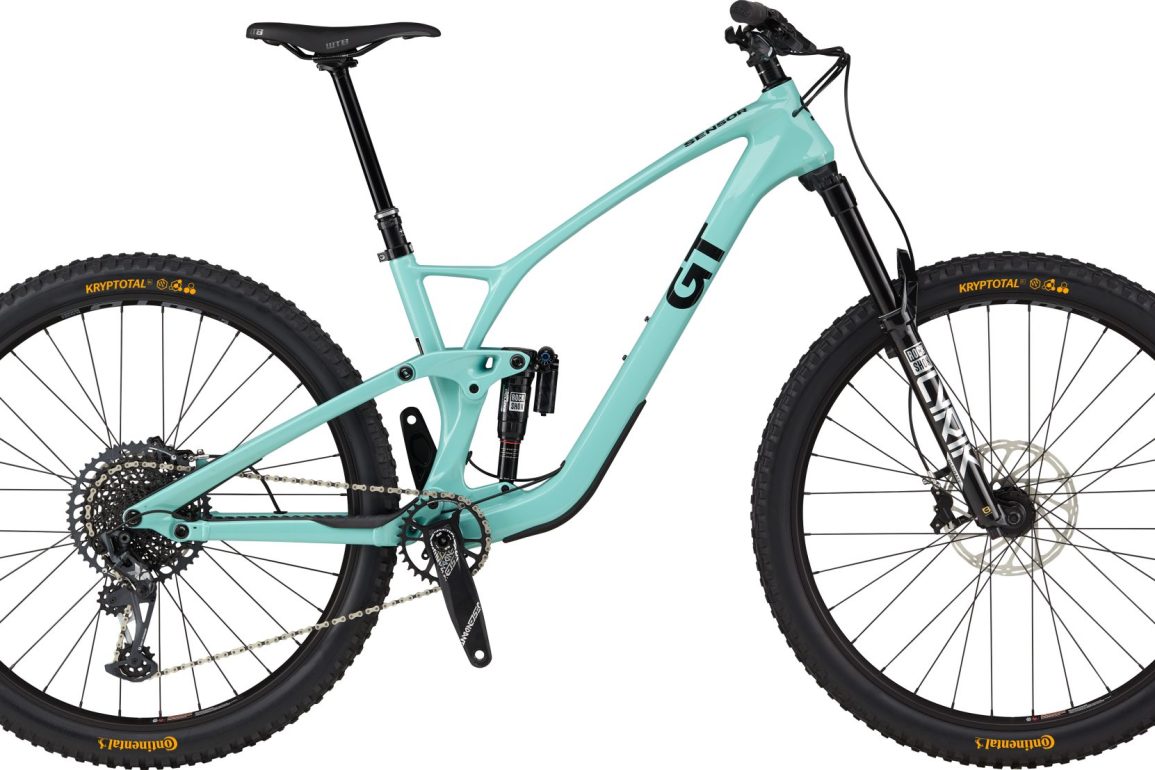

29 Sensor Carbon Pro LE

Key features:

  • Rockshox Lyrik Ultimate 150mm fork
  • Rockshox Super Deluxe Ultimate shock
  • SRAM XO1/GX Eagle 12-speed drive
  • SRAM Code RSC brakes
  • WTB KOM Trail i30 rims on Formula/SRAM MTH hubs
  • TranzX +Rad dropper
  • £5,000.00 RRP

29 Sensor Carbon Pro

Key features:

  • Rockshox Lyrik Select+ 150mm fork
  • Rockshox Super Deluxe Select+ shock
  • SRAM GX/NX Eagle 12-speed drive
  • SRAM Code R brakes
  • WTB KOM Trail i30 rims on Formula hubs
  • TranzX +Rad dropper
  • £4,200.00 RRP

29 Sensor Carbon Elite

Key features:

  • Marzocchi Bomber Z2 150mm fork
  • Marzocchi Bomber Z2 coil shock
  • SRAM SX Eagle 12-speed drive
  • TRP Slate T4 brakes
  • WTB ST i30 TCS 2.0 rims on Formula hubs
  • GT Dropkick dropper
  • £3,400.00 RRP

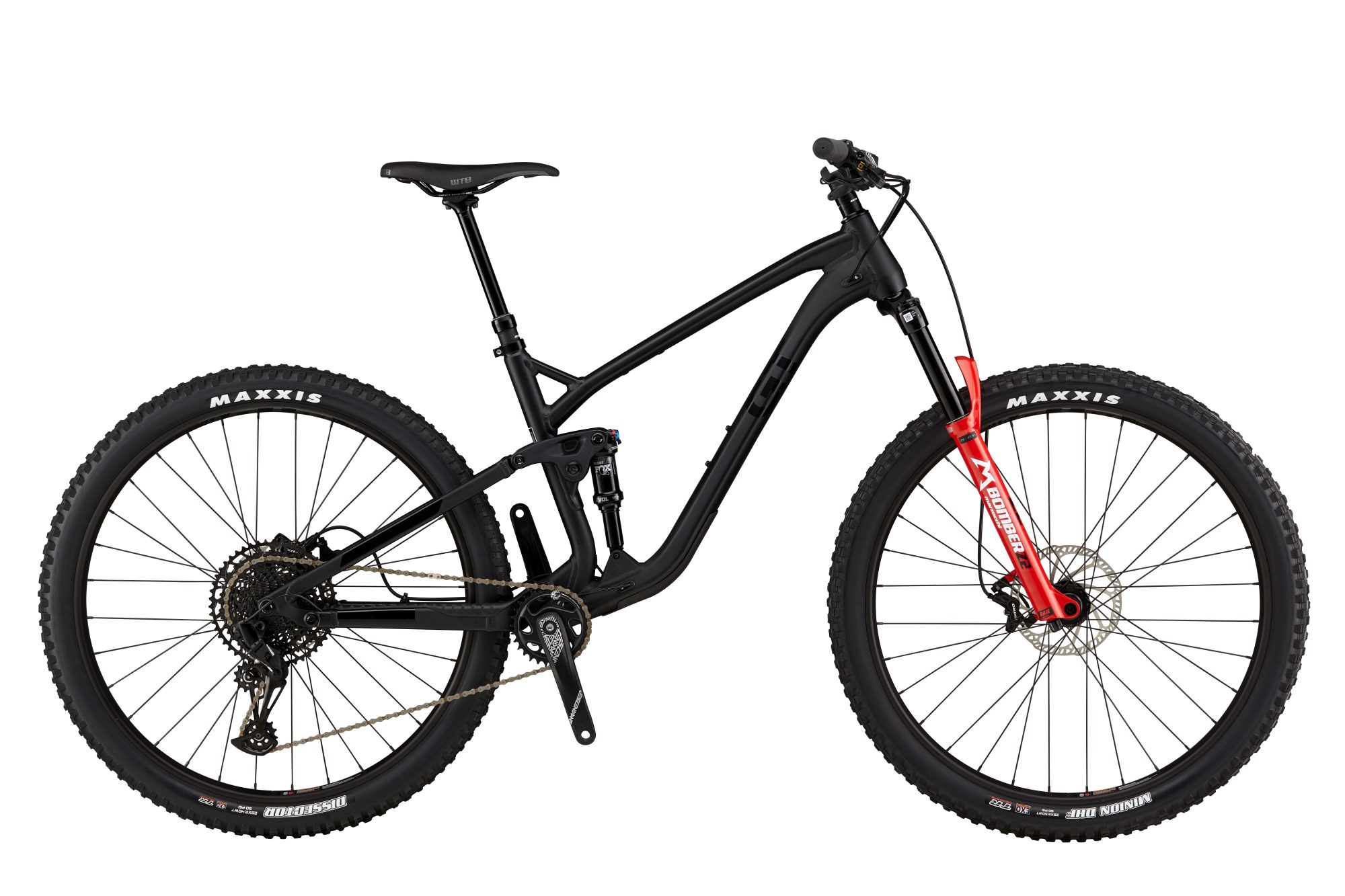

29 Sensor Comp

Key features:

  • Marzocchi Bomber Z2 140mm fork
  • Fox DPS Performance shock
  • SRAM SX Eagle 12-speed drive
  • Tektro M475 brakes
  • WTB ST i30 TCS 2.0 rims on Formula hubs
  • GT Dropkick dropper
  • £2,500.00 RRP

29 Sensor Sport

Key features:

  • Rockshox Recon Silver 140mm fork
  • X-Fusion 02 Pro RL shock
  • Microshift Avdent X 10-speed drive
  • Tektro M275 brakes
  • WTB STX i25 TCS rims on Formula hubs
  • TranzX dropper
  • £2,200.00 RRP

Sensor ST Pro

Key features:

  • Rockshox Pike Select+ 150mm fork
  • Rockshox Deluxe Select+ shock
  • SRAM GX/NX Eagle 12-speed drive
  • SRAM G2 RSC brakes
  • WTB KOM Trail i27 rims on Formula hubs
  • GT Dropkick dropper
  • £4,000.00 RRP

Sensor ST Elite

Key features:

  • Marzocchi Bomber Z2 140mm fork
  • Fox DPS Performance shock
  • SRAM SX Eagle 12-speed drive
  • SRAM Guide T brakes
  • WTB ST i25TCS 2.0 rims on Formula hubs
  • GT Dropkick dropper
  • £3,350.00 RRP

You can check out the new GT Sensor and Sensor ST over on their website here.
